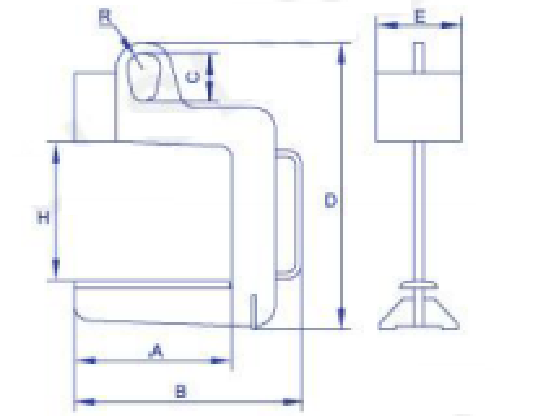

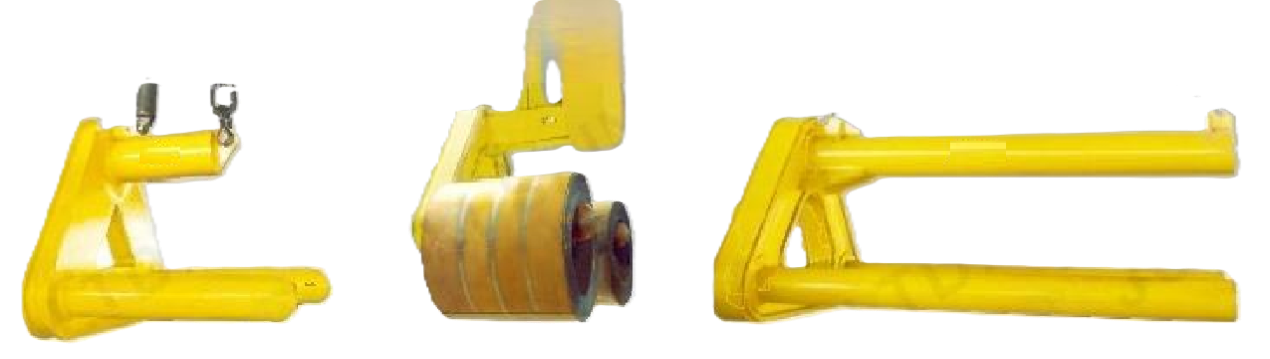

"C" Type Horizontal Steel Coil Lifting Clamp

■ Used for horizontal lifting the steel coil.

■ Select type “A” with working load 3.2T,and type "B" for working load more than 3.2T.

P 4 - Shanghai Jingyuan Industrial Co., Ltd.
P 4 - Shanghai Jingyuan Industrial Co., Ltd.
P 4 - Shanghai Jingyuan Industrial Co., Ltd.
WLL Width of the steel coil Inner Dia of the steel A B C D E H R
(t) (mm ) (mm ) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
3.2 ≤300 ≥400 300 590 155 845 250 430 50
3.2 350-500 ≥400 500 725 155 924 250 450 50
5 750-900 ≥400 900 1225 200 1144 324 500 60
5 900-1100 ≥500 1100 1450 200 1331 318 600 60
5 1100-1300 ≥500 1300 1670 200 1332 375 600 60
10 750-900 ≥500 900 1290 300 1555 435 650 90
10 900-1120 ≥500 1120 1555 300 1767 477 850 90
10 1100-1300 ≥500 1300 1758 300 1722 478 750 90
10 1300-1500 ≥500 1500 1955 300 1854 467 850 90
16 900-1100 ≥600 110 1540 310 1850 467 850 90
16 1100-1250 ≥600 1250 1710 310 1871 533 850 90
25 900-1100 ≥600 1100 1570 370 1982 633 860 110
25 1100-1300 ≥700 1300 1810 370 2058 716 860 110
32 1400-1660 ≥700 1660 2240 550 2450 700 850 130

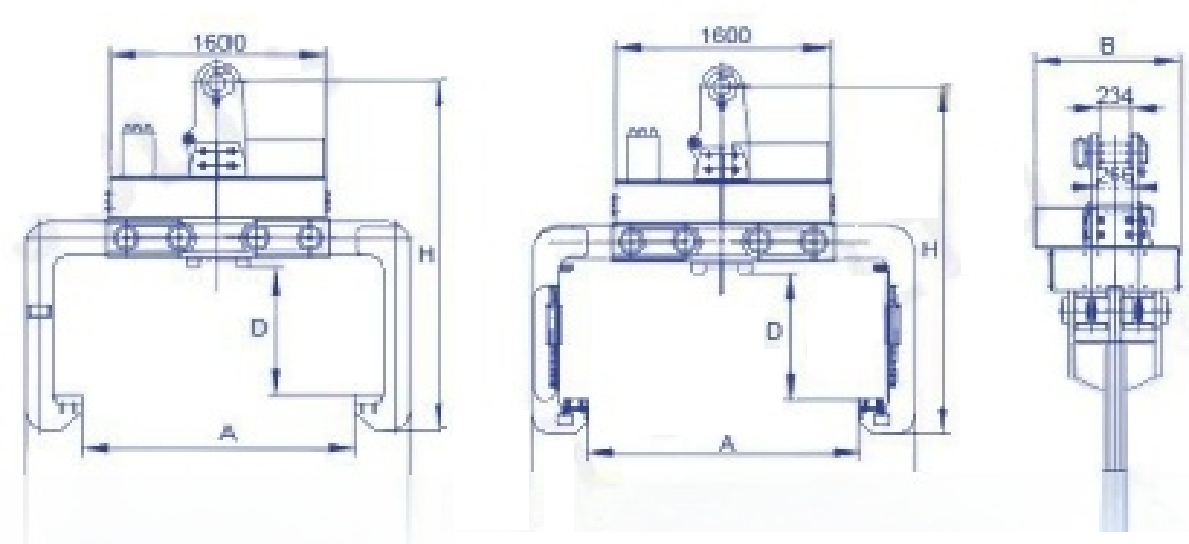

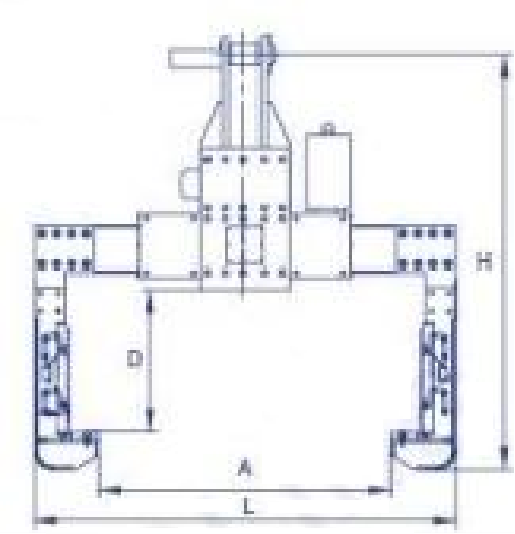

Rack and Pinion Horizontal Steel Coil Electric Lifting Clamp

■ Composed of the lifting eye,clamp legs,clamp leg drive system,electric and electric control systems,cable drum,etc.
■ With features of compact structure,less weight,accurately clamp,high efficiency,good applicability,advanced technology,easy to maintenance.
■ Widely used in carrying horizontal steel coil,stacking in dock warehouse,loading and unloading for transportation.
■ Customer design is available.

P 4 - Shanghai Jingyuan Industrial Co., Ltd.
P 4 - Shanghai Jingyuan Industrial Co., Ltd.

WLL Steel coil Parameters Opening degree(A) Max.Dimension(mm) Limit Device Remark
t mm mm D L B H
10
InnerDia. φ508 Outer Dia φ2150
300~2000 1000 2900 720 2950
Limited by travel switch,Limited by optoelectronic switch

Max temperature:600℃
Max temperature:80℃
20 300~2000 1000 2900 720 2950
30 300~2000 1000 2900 720 2950
40 300~2000 1000 2900 720 2950

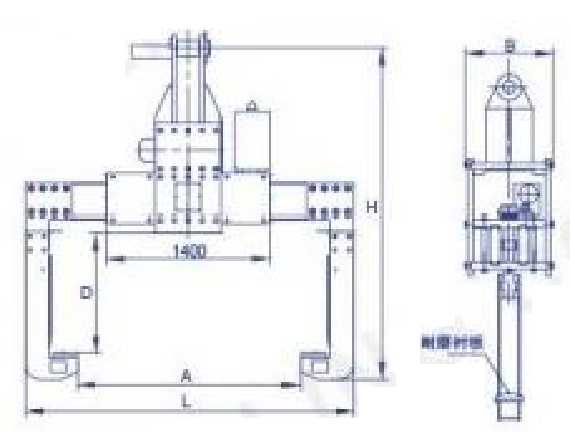

Screw Rod Horizontal Steel Coil Electric Lifting Clamp

■ Composed of the lifting eye,clamp legs,clamp leg drive system,electric and electric control systems,cable drum,etc.
■ With features of compact structure,less weight,accurately clamp,high efficiency,good applicability,advanced technology,easy to maintenance.
■ Widely used in carrying horizontal steel coil,stacking in dock warehouse,loading and unloading for transportation.
■ Customer design is available

P 4 - Shanghai Jingyuan Industrial Co., Ltd.

WLL Steel coil Parameters Opening degree(A) Max.Dimension(mm) Limit Device Remark
t mm D L B H
10
InnerDia. φ508 Outer Dia φ2150
300~2000 1000 2900 1070 2750
Limited by travel switch,Limited by optoelectronic switch

Max temperature:600℃
Max temperature:80℃
20 300~2000 1000 2900 1070 2750
30 300~2000 1000 2900 1070 2750
40 300~2000 1000 2900 1070 2750

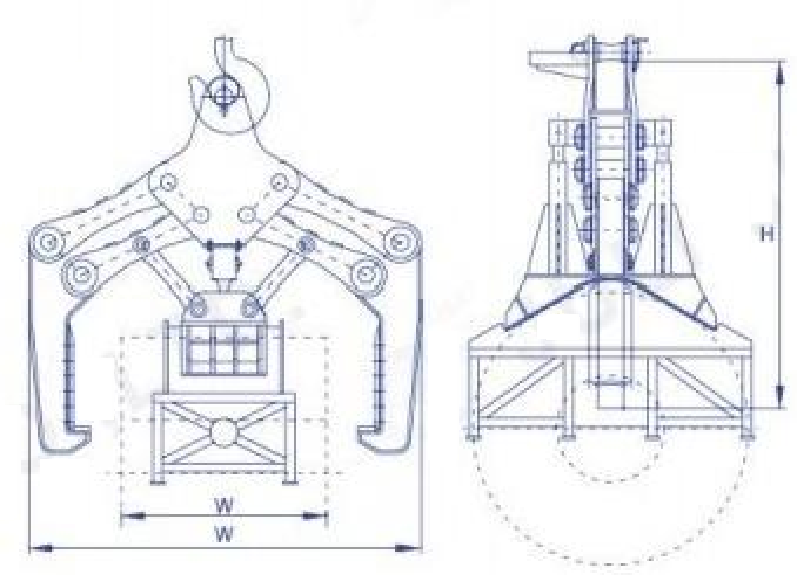

Horizontal Steel Coil Mechanical Lifting Clamp

■ With features of compact structure,less weight,accurately clamp,high efficiency,good applicability,advanced technology,easy to maintenance.
■ Widely used in carrying horizontal steel coil,stacking in dock warehouse,loading and unloading for transportation.Customer design is available

P 4 - Shanghai Jingyuan Industrial Co., Ltd.
WLL Width of the steel coil Inner Dia.of the steel coil Outer Dia.of the steel coil Max.Dimension(mm)
(t) mm mm mm W H
20 930-1250 φ580 φ1050-φ1280 2400 2600
35 900-1450 φ762 φ1500-φ1950 2700 3000
